Quick Details

  • Brand Name: QIzhi
  • Model Number: Y2EJ-180M-2
  • Type: Asynchronous Motor
  • Frequency: 50 Hz
  • Output Power: 22.5Kw
  • Protect Feature: Totally Enclosed
  • Phase: Three-phase
  • Certification: CCC, CE
  • AC Voltage: 380V
  • Place of Origin: Zhejiang, China (Mainland)
  • Efficiency: IE 2
  • Application: General Machinery & pumps & fans &reducer
  • Production Class: IP54
  • Insuiation class: F
  • Duty type: S1
  • Rated Voltage: 220/380V 230/440V 380/660V 400/690V
  • Rated frequency: 50/60Hz
  • Cooling method: IC411
  • pole: 2/4/6/8

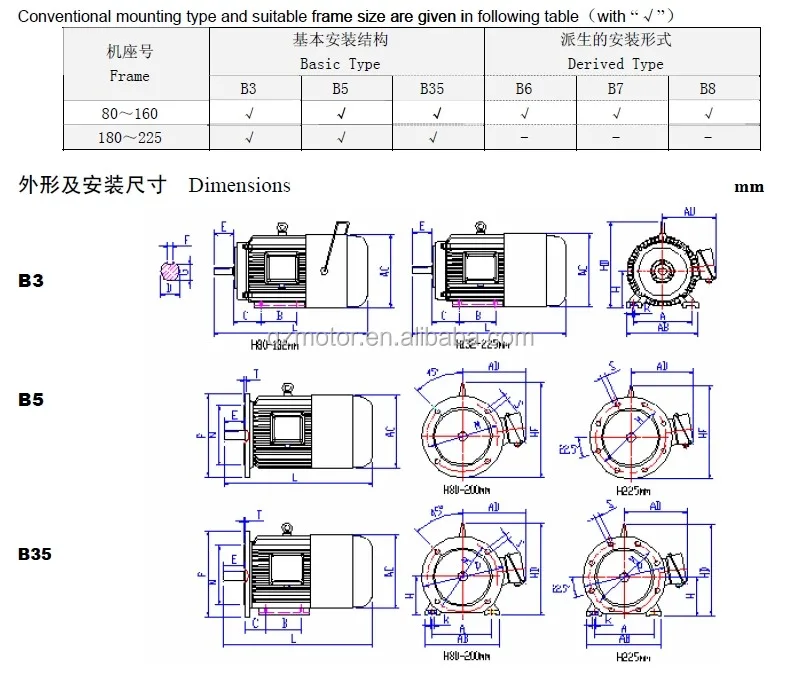

  • Mounting: B3 B5 B35
  • Shape: Squirred cage

Packaging & Delivery

Packaging Details: From 80 to 112m with carton packing,
from 132 to above with wooden case or plywooden box
Delivery Detail: 30 days





Why us:



     CHOOSE QIZHI       CHOOSE YOU WANT



Product Description



      YEJ series electromagnetic brake motor is designed according to IEC standard and has a lot of features such as prompt braking, compact structure, high efficiency, energy saving, high reliability, large starting torque etc. Besides, the brake of the motor has a manual release device, which allows the brake a junction of both manual release and electromagnetic release and is convenient for operation.

       The DC brake disc is assembled on the non-drive end shaft of the motor, when supplied with power, the brake works simultaneously, the electromagnetic force attracts the armature and presses the spring, thus the brake disc is released from armature and endshield, then the motor begins to run; When the power supply is interrupted, electromagnetic force lost, the spring pushes the armature to the brake disc, the motor stops immediately, a braking action finished.



Application:

· ----mechanical equipments and transportation equipments

· ----packing machinery

· ----wooden machinery

· ----food processing machinery

· ----chemical machinery

· ----textile machinery

· ----construction machinery

· ----electric valve

· ----rubber chemical machinery

· ----metal-working machine tools

· ----gear reducer

PRODUCTS  DISPLAY







Packaging & Shipping

 Packaging Details: carton/plywood box according to international export standard or follow requests

Delivery Detail: 5-30 days after payment

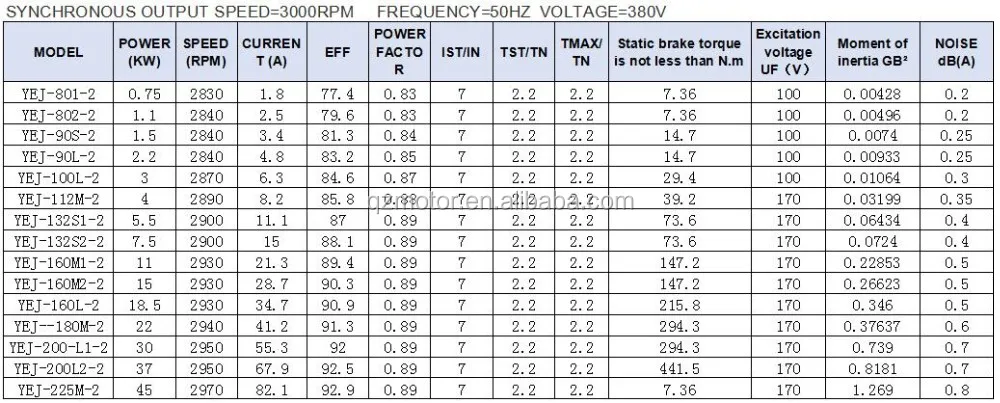

specifications

Brand name

  Qizhi

Frame Size:

Y2EJ-180M-2

Type

Asynchronous motor

Frequency

 50/60 Hz

Output power

22.5Kw

AC Voltage

380/440/460/660V

Phase

three phase

 Certification

CCC,CE

 Protect        Feature

Totally Enclosed

Place of origin

zhejiang,China

 Efficiency

IE2

 Color

Blue,gray

Insulation class

     F

Protection class

IP54

 Duty type

S1



Connection:

Y Star-connection for up to 3kw

D delta-connection for 4kw and above



Accessories



Company Information







Our Services

 Pre-sales service
•We are a sales team, with all technical support from engineer team.
•We value every inquiry sent to us, ensure quick competitive offer within 12 hours.

•We cooperate with customer to design and develop the new products. Provide all necessary document.


After sales service
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We loge your complain within 48hours.



Company Information

 Zhejiang qizhi electric motor co.,Ltd . Locates in Taizhou ,the stronger manufacuturing base of China,cover the distance of more than 2 kilometers from luqiao airport.and its neighbouring jiaojiang,wenzhou and ninbo port.With high covenient communication and traffic system.

Since 1998,our company has covered the area of 8000m2 and 6500m2 of building area.

We produce nearly all the ranges of motor: YE2 ,Y2EJ, YD,Y2VF,YCT and YE2TT series. We can also provide the products according to the client requirement. We ensure the quality and maintain all life .

All our products are manufactured in full complince with the IEC standards .

All our products have passed CCC (China Compulsory Certification),China Energy Conservation Product Certification and CE(Conformity with European)Certification
